Display grid lines in message list
We have poor eyesight, so in vertical display mode, we could really benefit from having grid lines (at least horizontally) to visually distinguish each message. We have read various solutions on the Internet, but none seems to work at least not in dark theme mode, which is the default for a great many people with vision impairments (or just plain tired eyes). Perhaps some solutions that once worked have been uprooted, so to speak, during the course of Thunderbird updates.
We are used to having grid lines in Outlook (desktop). We are currently exploring switching to Thunderbird, but it needs to support our vision needs. For us, this capability is fundamental, not optional.
We are comfortable making config entries, creating and working in userChrome.css, and the like. We would be grateful for any guidance in this regard.
Thank you kindly!
Ñemoĩporã poravopyre
You could use my code and replace "outline" with "border-bottom" . Sorry, I can't stand dark themes! The following code ....
tr[is="thread-row"] > td { border-bottom: 0.1px solid black !important; }

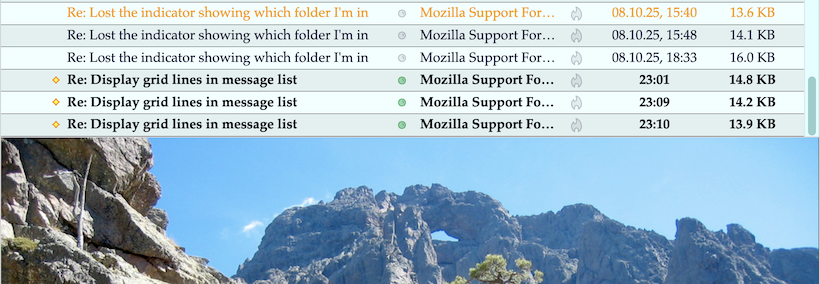

.... looks like that image in my TB
Emoñe’ẽ ko mbohavái ejeregua reheve 👍 1Opaite Mbohovái (13)
Try in userChrome.css:
table[is="tree-view-table"] td {
border-bottom: solid 1px white !important;
}
Moambuepyre
Thank you, Ed. I tried this, but no lines in the message list. Does this code need to be preceded by a namespace statement, or something else?
No namespâce statement. Did you restart Thunderbird after adding Ed's code to your userChrome.css file? Try the following CSS code in your userChrome.css (works for me on macOS)
tr[is="thread-row"] > td { outline: 0.2px dotted black !important; }
Thank you, Mapenzi, this works. I changed dotted to solid and black to white, since I am using a dark theme.
Now, I would like only row separators, no column separators. I assume I have to replace "outline" with something else. Would that be "row"?
Also, the lines seem very thick/heavy. I tried reducing the pixel size to 0.01px, but to no avail. I am not using a very high-res monitor. Could that be a limitation, or is there a way to reduce the pixel size.
Again, thank you!
Well, now I returned to Ed's code, and it works. Apparently I had a commenting error farther down in the userChrome.css file. The lines are still a bit too thick/heavy; the ones in Outlook look better, but these are acceptable.
Thank you both!
Oh, Marpenzi, I still would be grateful to know what to replace "outline" with. :)
Ñemoĩporã poravopyre
You could use my code and replace "outline" with "border-bottom" . Sorry, I can't stand dark themes! The following code ....
tr[is="thread-row"] > td { border-bottom: 0.1px solid black !important; }
.... looks like that image in my TB
Thank you, Mapenzi! We can work with this example. I can't imagine working without dark themes, and my colleague can't imagine working with them. Freedom is good! :)
Are we using some standard css syntax, or something specific to Mozilla, or …? We would like to become more proficient using css with Tbird and also Firefox.
VLMin said
Are we using some standard css syntax, or something specific to Mozilla, or …? We would like to become more proficient using css with Tbird and also Firefox.
I think this is standard. Some websites : https://developer.mozilla.org/en-US/docs/Web/CSS/CSS_syntax/Syntax https://www.w3schools.com/css/css_syntax.ASP https://www.geeksforgeeks.org/css/css-outline/ https://www.sfu.ca/~tutor/techbytes/Dreamweaver/dw2.html https://brainstation.io/learn/html/css-syntax
You can't make a border less than 1px. Instead of white, try #e6e6e6 or #d9d9d9.
Ed said
You can't make a border less than 1px.

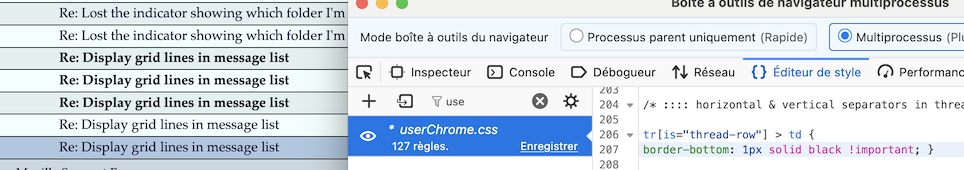

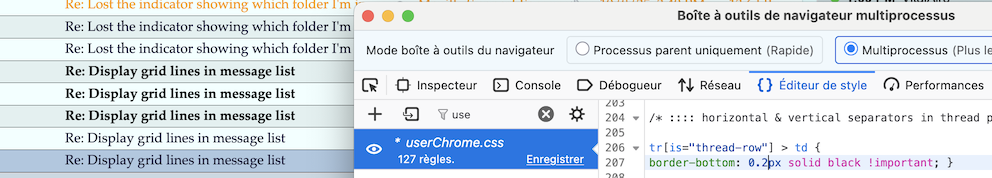

Are you sure, Ed? Here are two screen shots border-bottom 1px vs 0.2px ...
Thank you both.
Ed, nice softening of the white. I also gained some ground by changing the density setting.
Mapenzi, thank you for all those links. We will pursue them!
Withing you both a wonderful weekend!
Oops, that was supposed to be "wishing". :)
